SPEEDTAIL
R a c e c a r C o m p e t i t i o n
PROJECT SCOPE
GOAL
In teams of two, design and construct a car model to be sent down a ramp, propelled by kinetic energy only, competing in various categories including: accuracy, fastest/highest air, and innovation.
REQUIREMENTS
Use laser cutting, 3D printing, vacuum forming, and more in a “making-testing loop” process to explore a variety of techniques, refinine iterations along the way.
Design within a set range of dimensions for parts including:
Weight: 575g,
Front Overhang: 8-58mm,
Rear Overhang: 8-74.2mm,
Wheelbase: 177.8mm,
Front/Rear Track: 127mm,
Wheel Bearing: 608ZZ,
Max. Size: 310mm (L) x 150mm (W) x 120mm (H)
Starting Pin Location on Ramp:
IDEATION PHASE
Moodboard [collaborative]
Form Ideation [completed by teammate]

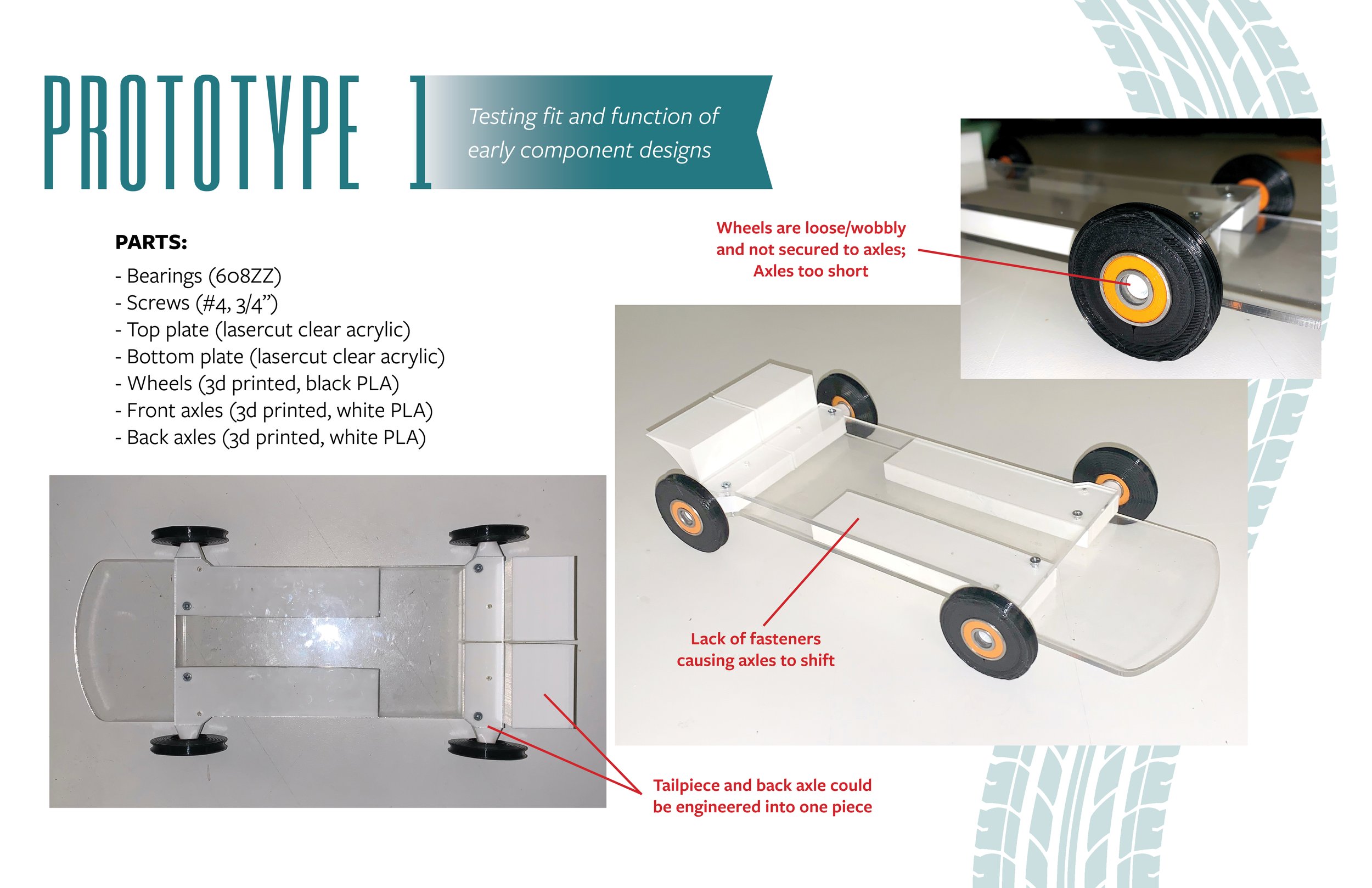

DESIGN PROCESS
TECHNICAL DRAWINGS
RENDERS
FINAL MODEL
COMPETITION HIGHLIGHTS
Achievements:
Highest Air !
